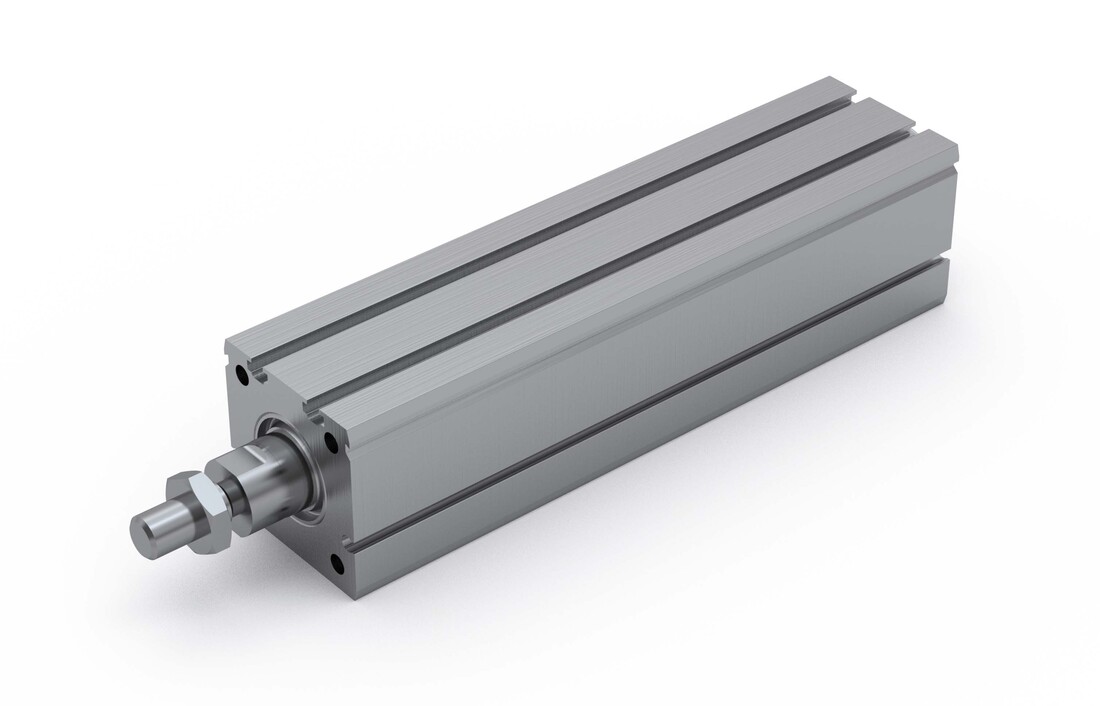

MCE 32
Mini electric cylinder MCE is a mini linear drive with a piston rod. By using an integrated precision ball screw drive, the rotary motion (rotation) of the drive shaft is converted to the linear motion (translation) of the piston rod with high mechanical efficiency and low internal friction.
A preassembled standard motor (in-line with a motor adapter and a coupling or in-parallel with a motor sidedrive and a timing belt) together with the standard drive, makes the system plug and play ready. Compact dimensions and optimally selected motor combinations cover a wide range of applications.
The aluminium cylinder profile includes T-slots on the bottom for fixing the electric cylinder, as well as side slots for clamping fixtures and magnetic field sensors.
Options, such as female piston rod end and extended piston rod, together with a wide range of accessories make this product highly flexible. There is also an option of the mini electric cylinder without the preassembled motor if an individual motor is required.
For applications, where higher resistance to lateral loads or torsional moments is required, a guiding unit GUC can be used. By using the guiding unit, which offers high precision guiding and positioning, the mini electric cylinders can easily be combined to the multi-axis systems.
Each MCE is optimally pre-lubricated and ready for a maintenance-free operating process.
Note!
All the data of the dynamic load capacities (ball screw drive) stated in the tables are theoretical without considering any safety factor. The safety factor depends on the application and its requested safety and service life.
We recommend a minimum dynamic safety factor of 5,0 or more. Please refer to the Technical Information document where calculation of the safety factor of the ball screw drive and how the applied load affects the service life are presented.
All dimensions are in mm. The scale of the drawings may not be equal.
Please see the attached Technical information document for further information and data.
Contact us if you have questions or need additional information.
A preassembled standard motor (in-line with a motor adapter and a coupling or in-parallel with a motor sidedrive and a timing belt) together with the standard drive, makes the system plug and play ready. Compact dimensions and optimally selected motor combinations cover a wide range of applications.
The aluminium cylinder profile includes T-slots on the bottom for fixing the electric cylinder, as well as side slots for clamping fixtures and magnetic field sensors.
Options, such as female piston rod end and extended piston rod, together with a wide range of accessories make this product highly flexible. There is also an option of the mini electric cylinder without the preassembled motor if an individual motor is required.
For applications, where higher resistance to lateral loads or torsional moments is required, a guiding unit GUC can be used. By using the guiding unit, which offers high precision guiding and positioning, the mini electric cylinders can easily be combined to the multi-axis systems.
Each MCE is optimally pre-lubricated and ready for a maintenance-free operating process.
Note!
All the data of the dynamic load capacities (ball screw drive) stated in the tables are theoretical without considering any safety factor. The safety factor depends on the application and its requested safety and service life.
We recommend a minimum dynamic safety factor of 5,0 or more. Please refer to the Technical Information document where calculation of the safety factor of the ball screw drive and how the applied load affects the service life are presented.
All dimensions are in mm. The scale of the drawings may not be equal.
Please see the attached Technical information document for further information and data.
Contact us if you have questions or need additional information.
Download PDF
code.product.loadingpdf
+
Tilføj til PDF-katalog
Product Information
Max. Permissible Axial Load (N): 375
Max. Travel Speed (m/s): 0.60
Absolute Stroke: 25, 50, 75, 100, 125, 150, 175, 200
Max. Stroke (mm): 200
Max. Repeatability (mm): ±0.015 (valid for one-directional axial load)
Axial Backlash (mm): ≤ 0.06 (valid for ball screw drive in new condition)
Max. Acceleration (m/s): 20
Max. Angle of Piston Rod Rotation: ≤ ±1 ° (refers to device in new condition)
Width (mm): 32.0 (cylinder profile)
Height (mm): 32.0 (cylinder profile)
Ambient Temperature (°C): 0 – +50 (0 – +60 without a motor)
Protection Class: IP40
Duty Cycle: 100%
Maintenance: Life-time pre-lubricated
| Designation | Select all | Lead Time * | Description | Ball Screw (d x l) | Max. Drive Torque Mₚ (Nm) | Max. Travel Speed Vmax (m/s) | Max. Rotational Speed nmax (min⁻¹) (rev/min) | No Load Torque M₀ (Nm) | Axial Dynamic Load Capacity Ca (N) | Max. Permissible Axial Load Fpa (N) | Max. Permissible Payload Horizontal mph (kg) | Max. Permissible Payload Vertical mpv (kg) | Max. Permissible Radial Load on Shaft Fpr (N) | Motor Type | Motor Size (mm) | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
2 | Without motor | 8 × 2 mm | 0.13 | 0.150 | 4500 | 0.04 | 2000 | 375 | 126 | 31 | 50 | - | - |
|
||
|
|
2 | Without motor | 8 × 8 mm | 0.53 | 0.600 | 4500 | 0.05 | 1500 | 375 | 126 | 31 | 50 | - | - |
|
||
|
|
2 | With motor size 28 and motor adapter VK | 8 × 2 mm | - | 0.094 | 2810 | - | 2000 | 215 | 72 | 18 | - | Stepper | 28 |
|
||
|
|
2 | With motor size 28 and motor adapter VK | 8 × 8 mm | - | 0.400 | 3000 | - | 1500 | 50 | 6.6 | 4 | - | Stepper | 28 |
|
||
|
|
2 | With motor size 42 and motor adapter VK | 8 × 2 mm | - | 0.100 | 3000 | - | 2000 | 375 | 126 | 31 | - | Stepper | 42 |
|
||
|
|
2 | With motor size 42 and motor adapter VK | 8 × 8 mm | - | 0.400 | 3000 | - | 1500 | 200 | 35 | 17 | - | Stepper | 42 |
|
||
|
|
2 | With motor size 28 and motor side drive MSD | 8 × 2 mm | - | 0.064 | 1920 | - | 2000 | 180 | 60 | 15 | - | Stepper | 28 |
|
||
|
|
2 | With motor size 28 and motor side drive MSD | 8 × 8 mm | - | 0.208 | 1560 | - | 1500 | 40 | 6.8 | 3.1 | - | Stepper | 28 |
|
||
|
|
2 | With motor size 42 and motor side drive MSD | 8 × 2 mm | - | 0.100 | 3000 | - | 2000 | 375 | 126 | 31 | - | Stepper | 42 |
|
||
|
|
2 | With motor size 42 and motor side drive MSD | 8 × 8 mm | - | 0.400 | 3000 | - | 1500 | 175 | 35 | 15 | - | Stepper | 42 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | L11 | L12 | L13 | L14 | L15 | L16 | L17 | L18 | L19 | L20 | L21 | L22 | L23 | L24 | L25 | L26 | L27 | L28 | L29 | ZK1 | ZK2 | V1 | V2 | V3 | V4 | U1 | U2 | U3 | U4 | U5 | S1 | S2 | S3 | S4 | S5 | S6 | S7 | S8 | S9 | S10 | S11 | S12 | S13 | S14 | E1 | E2 | E3 | E4 | E5 | E6 | E7 | E8 | E9 | E10 | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
65 | 32 | 20 | 12 | Ø 14 | 5.5 | Ø M8 × 1.25 | 4 | 8 | Ø M4 | 32 | 22 | 13.5 | 22.8 | 4.4 | Ø M5 | 8 | 24.5 | 24.5 | 24.5 | Ø M3 | 8 | 14 | 7 | Ø 5 (h7) | Ø 22.6 | Ø 25 (h7) | 4.5 | 2.3 | 12 | 13 | - | - | - | - | 3.2 | 5.8 | 3.6 | 2 | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
||
|
|
65 | 32 | 20 | 12 | Ø 14 | 5.5 | Ø M8 × 1.25 | 4 | 8 | Ø M4 | 32 | 22 | 13.5 | 22.8 | 4.4 | Ø M5 | 8 | 24.5 | 24.5 | 24.5 | Ø M3 | 8 | 14 | 7 | Ø 5 (h7) | Ø 22.6 | Ø 25 (h7) | 4.5 | 2.3 | 12 | 13 | - | - | - | - | 3.2 | 5.8 | 3.6 | 2 | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
||
|
|
65 | 32 | 20 | 12 | Ø 14 | 5.5 | Ø M8 × 1.25 | 4 | 8 | Ø M4 | 32 | 22 | 13.5 | 22.8 | 4.4 | Ø M5 | 8 | 24.5 | 24.5 | 24.5 | Ø M3 | 8 | 14 | 7 | Ø 5 (h7) | Ø 22.6 | Ø 25 (h7) | 4.5 | 2.3 | 12 | 13 | 35 | 31.5 | 31.5 | 0 | 3.2 | 5.8 | 3.6 | 2 | 1 | 22 | 16 | 52.5 | 18.25 | 19.5 | 5.5 | 22 | Ø M5 | 7 | 31.5 | 31.5 | 34 | 0 | 86.75 | - | - | - | - | - | - | - | - | - | - |
|
||
|
|
65 | 32 | 20 | 12 | Ø 14 | 5.5 | Ø M8 × 1.25 | 4 | 8 | Ø M4 | 32 | 22 | 13.5 | 22.8 | 4.4 | Ø M5 | 8 | 24.5 | 24.5 | 24.5 | Ø M3 | 8 | 14 | 7 | Ø 5 (h7) | Ø 22.6 | Ø 25 (h7) | 4.5 | 2.3 | 12 | 13 | 35 | 31.5 | 31.5 | 0 | 3.2 | 5.8 | 3.6 | 2 | 1 | 22 | 16 | 52.5 | 18.25 | 19.5 | 5.5 | 22 | Ø M5 | 7 | 31.5 | 31.5 | 34 | 0 | 86.75 | - | - | - | - | - | - | - | - | - | - |
|
||
|
|
65 | 32 | 20 | 12 | Ø 14 | 5.5 | Ø M8 × 1.25 | 4 | 8 | Ø M4 | 32 | 22 | 13.5 | 22.8 | 4.4 | Ø M5 | 8 | 24.5 | 24.5 | 24.5 | Ø M3 | 8 | 14 | 7 | Ø 5 (h7) | Ø 22.6 | Ø 25 (h7) | 4.5 | 2.3 | 12 | 13 | 40 | 31.5 | 42 | 5.5 | 3.2 | 5.8 | 3.6 | 2 | 1 | 22 | 16 | 70.5 | 24.25 | 19.5 | 6.5 | 22 | Ø M5 | 7 | 31.5 | 44.5 | 46 | 48 | 110.75 | M12 5-pole | M12 8-pole | – (with brake: M8 3-pole) | 14 (± 1) | 14 (± 0.3) | 19.5 | – (with brake: 9 (± 1)) | – (with brake: 27 (± 0.3)) | 70.4 (± 1) (with brake: 106.4 (± 0.3)) | 42.3 |
|
||
|
|
65 | 32 | 20 | 12 | Ø 14 | 5.5 | Ø M8 × 1.25 | 4 | 8 | Ø M4 | 32 | 22 | 13.5 | 22.8 | 4.4 | Ø M5 | 8 | 24.5 | 24.5 | 24.5 | Ø M3 | 8 | 14 | 7 | Ø 5 (h7) | Ø 22.6 | Ø 25 (h7) | 4.5 | 2.3 | 12 | 13 | 40 | 31.5 | 42 | 5.5 | 3.2 | 5.8 | 3.6 | 2 | 1 | 22 | 16 | 70.5 | 24.25 | 19.5 | 6.5 | 22 | Ø M5 | 7 | 31.5 | 44.5 | 46 | 48 | 110.75 | M12 5-pole | M12 8-pole | – (with brake: M8 3-pole) | 14 (± 1) | 14 (± 0.3) | 19.5 | – (with brake: 9 (± 1)) | – (with brake: 27 (± 0.3)) | 70.4 (± 1) (with brake: 106.4 (± 0.3)) | 42.3 |
|
||
|
|
65 | 32 | 20 | 12 | Ø 14 | 5.5 | Ø M8 × 1.25 | 4 | 8 | Ø M4 | 32 | 22 | 13.5 | 22.8 | 4.4 | Ø M5 | 8 | 24.5 | 24.5 | 24.5 | Ø M3 | 8 | 14 | 7 | Ø 5 (h7) | Ø 22.6 | Ø 25 (h7) | 4.5 | 2.3 | 12 | 13 | 35 | 31.5 | 31.5 | 0 | 3.2 | 5.8 | 3.6 | 2 | 1 | 22 | 16 | 52.5 | 18.25 | 19.5 | 5.5 | 22 | Ø M5 | 7 | 31.5 | 31.5 | 34 | 0 | 86.75 | - | - | - | - | - | - | - | - | - | - |
|
||
|
|
65 | 32 | 20 | 12 | Ø 14 | 5.5 | Ø M8 × 1.25 | 4 | 8 | Ø M4 | 32 | 22 | 13.5 | 22.8 | 4.4 | Ø M5 | 8 | 24.5 | 24.5 | 24.5 | Ø M3 | 8 | 14 | 7 | Ø 5 (h7) | Ø 22.6 | Ø 25 (h7) | 4.5 | 2.3 | 12 | 13 | 35 | 31.5 | 31.5 | 0 | 3.2 | 5.8 | 3.6 | 2 | 1 | 22 | 16 | 52.5 | 18.25 | 19.5 | 5.5 | 22 | Ø M5 | 7 | 31.5 | 31.5 | 34 | 0 | 86.75 | - | - | - | - | - | - | - | - | - | - |
|
||
|
|
65 | 32 | 20 | 12 | Ø 14 | 5.5 | Ø M8 × 1.25 | 4 | 8 | Ø M4 | 32 | 22 | 13.5 | 22.8 | 4.4 | Ø M5 | 8 | 24.5 | 24.5 | 24.5 | Ø M3 | 8 | 14 | 7 | Ø 5 (h7) | Ø 22.6 | Ø 25 (h7) | 4.5 | 2.3 | 12 | 13 | 40 | 31.5 | 42 | 5.5 | 3.2 | 5.8 | 3.6 | 2 | 1 | 22 | 16 | 70.5 | 24.25 | 19.5 | 6.5 | 22 | Ø M5 | 7 | 31.5 | 44.5 | 46 | 48 | 110.75 | M12 5-pole | M12 8-pole | – (with brake: M8 3-pole) | 14 (± 1) | 14 (± 0.3) | 19.5 | – (with brake: 9 (± 1)) | – (with brake: 27 (± 0.3)) | 70.4 (± 1) (with brake: 106.4 (± 0.3)) | 42.3 |
|
||
|
|
65 | 32 | 20 | 12 | Ø 14 | 5.5 | Ø M8 × 1.25 | 4 | 8 | Ø M4 | 32 | 22 | 13.5 | 22.8 | 4.4 | Ø M5 | 8 | 24.5 | 24.5 | 24.5 | Ø M3 | 8 | 14 | 7 | Ø 5 (h7) | Ø 22.6 | Ø 25 (h7) | 4.5 | 2.3 | 12 | 13 | 40 | 31.5 | 42 | 5.5 | 3.2 | 5.8 | 3.6 | 2 | 1 | 22 | 16 | 70.5 | 24.25 | 19.5 | 6.5 | 22 | Ø M5 | 7 | 31.5 | 44.5 | 46 | 48 | 110.75 | M12 5-pole | M12 8-pole | – (with brake: M8 3-pole) | 14 (± 1) | 14 (± 0.3) | 19.5 | – (with brake: 9 (± 1)) | – (with brake: 27 (± 0.3)) | 70.4 (± 1) (with brake: 106.4 (± 0.3)) | 42.3 |
|
| Designation | Select all | Moved Mass (kg) | Mass of the Mini Electric Cylinder mMCE (kg) | Mass Moment of Inertia JMCE (10⁻² kg cm²) | Planar Moment of Inertia ly (cm⁴) | Planar Moment of Inertia lz (cm⁴) | Holding Torque Motor Brake (Nm) | Mass of the motor and motor adapter VK (kg) | Mass of the motor and motor side drive MSD (kg) | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
0.12 + 0.0005 × Abs. stroke + 0.0005 × E | 0.31 + 0.0023 × Abs. stroke + 0.0005 × E | 0.70 + 0.0025 × Abs. stroke + 0.00005 × E + 0.1013 × mload | 6.42 (cylinder profile) | 6.58 (cylinder profile) | - | - | - |
|
||
|
|
0.12 + 0.0005 × Abs. stroke + 0.0005 × E | 0.31 + 0.0023 × Abs. stroke + 0.0005 × E | 0.88 + 0.0033 × Abs. stroke + 0.00077 × E + 1.6211 × mload | 6.42 (cylinder profile) | 6.58 (cylinder profile) | - | - | - |
|
||
|
|
- | - | - | 6.42 (cylinder profile) | 6.58 (cylinder profile) | - | - | - |
|
||
|
|
- | - | - | 6.42 (cylinder profile) | 6.58 (cylinder profile) | - | - | - |
|
||
|
|
- | - | - | 6.42 (cylinder profile) | 6.58 (cylinder profile) | 0.4 | 0.52 without brake / 0.65 with brake | - |
|
||
|
|
- | - | - | 6.42 (cylinder profile) | 6.58 (cylinder profile) | 0.4 | 0.52 without brake / 0.65 with brake | - |
|
||
|
|
- | - | - | 6.42 (cylinder profile) | 6.58 (cylinder profile) | - | - | - |
|
||
|
|
- | - | - | 6.42 (cylinder profile) | 6.58 (cylinder profile) | - | - | - |
|
||
|
|
- | - | - | 6.42 (cylinder profile) | 6.58 (cylinder profile) | 0.4 | - | 0.62 without brake / 0.75 with brake |
|
||
|
|
- | - | - | 6.42 (cylinder profile) | 6.58 (cylinder profile) | 0.4 | - | 0.62 without brake / 0.75 with brake |
|
-
-
Rod clevis SG
Piston Rod Accessory SG, galvanized steel -
Self-aligning joint FK
Piston Rod Accessory FK, galvanized steel -
Coupling piece KSZ
Piston Rod Accessory KSZ, galvanized steel -
Flange mounting MAFL
Mounting Attachment Accessory MAFL, anodized aluminium -
Foot mounting MAHP
Mounting Attachment Accessory MAHP, stainless steel -
Swivel/clevis mount MASU
Mounting Attachment Accessory MASU, aluminium -
Swivel foot mounting MLG
Mounting Attachment Accessory MLG, aluminium -
Clevis foot mounting MLBU
Mounting Attachment Accessory MLBU, galvanized steel -
Back mount ABM
Mounting Attachment Accessory ABM, stainless steel -
Trunnion mount MZK
Mounting Attachment Accessory MZK, galvanized steel -
Trunnion support MLZ
Mounting Attachment Accessory MLZ, galvanized steel and sinterized bronze -
Guiding unit GUC
For MCE & MSCE Mini Electric Cylinder & Slider -
Magnetic field sensors
Magnetic Field Sensors, Cables and Sensor Holder for MCE & MSCE -
Motor adapter VK
For MCE & MSCE Mini Electric Cylinder & Slider -

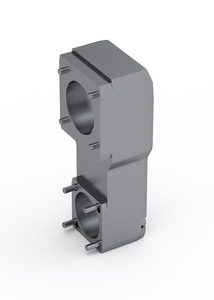

Motor side drive MSD with a timing belt
