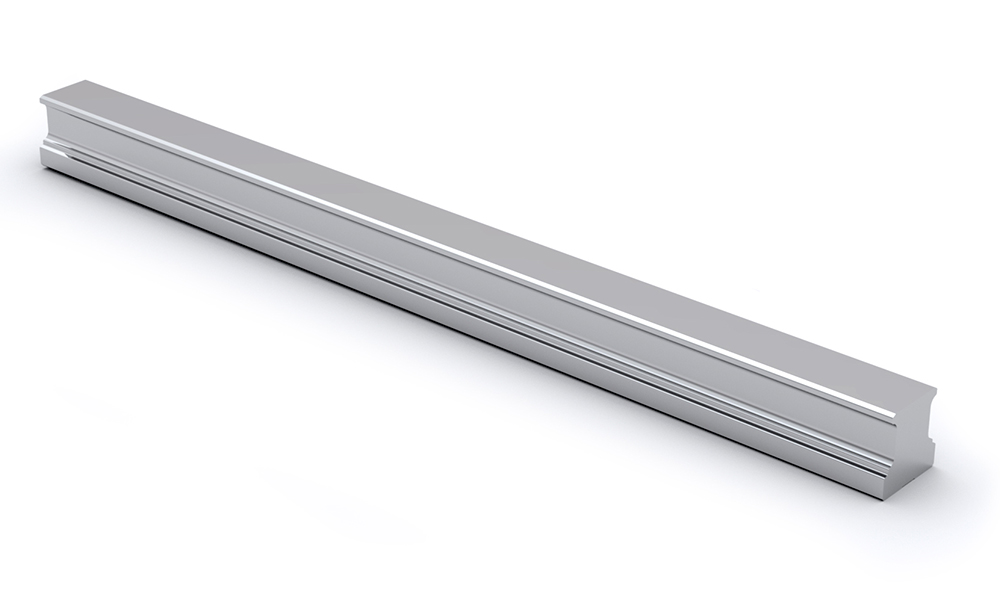

HRU Rail

STOCK ITEM
Counterbore from above.
Cut to length acc. to request.
Rails can be joint together for extra long lengths.
Contact Rollco for more information.

Dimensions in mm.
Download PDF

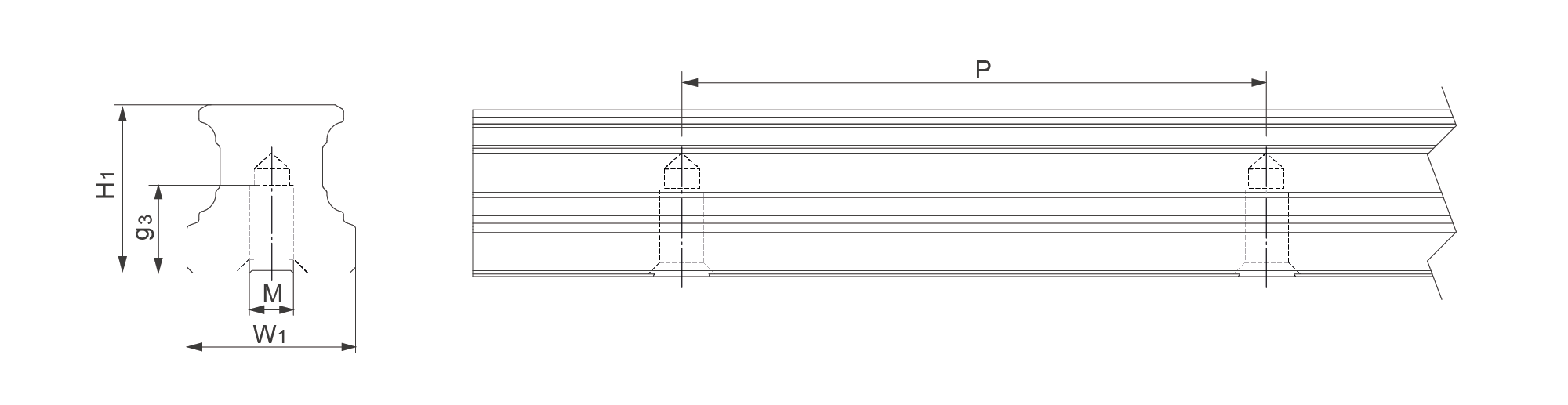

Technical Drawing
Designation Select all Lead Time * H1 W1 Hole Pitch (P) Mxg3 Length Weight Rail Weight
1 15 15 60 M5x8 4.000 1290 g/m 1290 g/m
Compare
Get quote
1 20 20 60 M6x10 4.000 2280 g/m 2280 g/m
Compare
Get quote
1 23 23 60 M6x12 4.000 3020 g/m 3020 g/m
Compare
Get quote
1 27 28 80 M8x15 4.000 4380 g/m 4380 g/m
Compare
Get quote
1 32 34 80 M8x15 4.000 6790 g/m 6790 g/m
Compare
Get quote
1 39 45 105 M12x19 4.000 10530 g/m 10530 g/m
Compare
Get quote
1 45,70 53 120 M14x24 4.000 14000 g/m 14000 g/m
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
