ARC MS

STOCK ITEM
Slim, super short block.

N2 = injecting holes
N2, N3 will be seal before shipment, open it when first using the product
N3 = O-ring size for lubrication from above

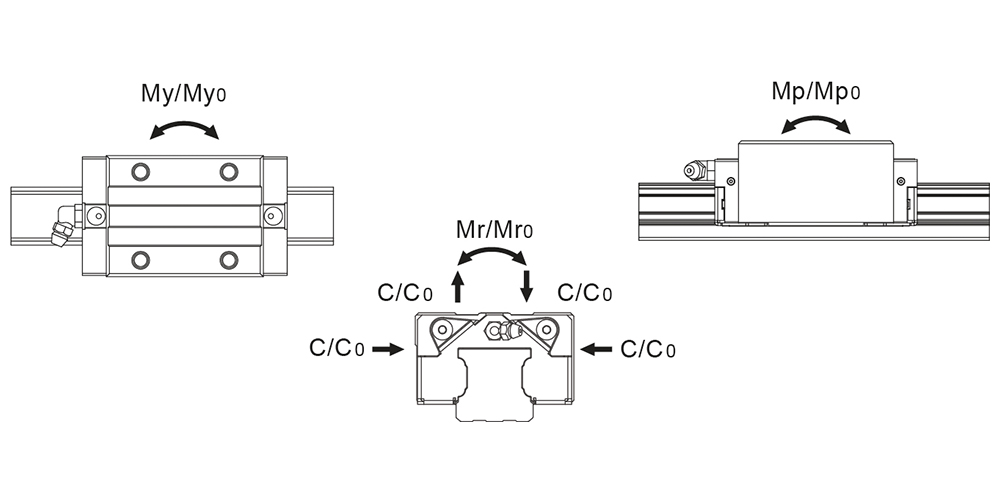

The rating load capacities and static moment are calculated according to ISO14728 standard. The rating life for basic dynamic load rating is defined as the total 100 km travel distance that 90% of a group of identical linear guides can be operated individually under the same conditions free from any material damage caused by rolling fatigue. When the standard of 50km travel distance is applied, the above basic dynamic load rating C of ISO 14728 should be multiplied by 1.26 for conversion.

Dimensions in mm.
Download PDF
Additional Drawing 1
Designation Select all Lead Time * Dynamic Load Capacity C Static Load Capacity C0 Static Moment Mr0 Static Moment Mp0 Static Moment My0 Weight Block
1 7,7 KN 12,1 KN 100 Nm 50 Nm 50 Nm 106 g
Compare
Get quote
1 12,5 KN 19,3 KN 205 Nm 100 Nm 100 Nm 170 g
Compare
Get quote
1 18,2 KN 27,3 KN 350 Nm 160 Nm 160 Nm 300 g
Compare
Get quote
1 23,3 KN 33,1 KN 520 Nm 230 Nm 230 Nm 560 g
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

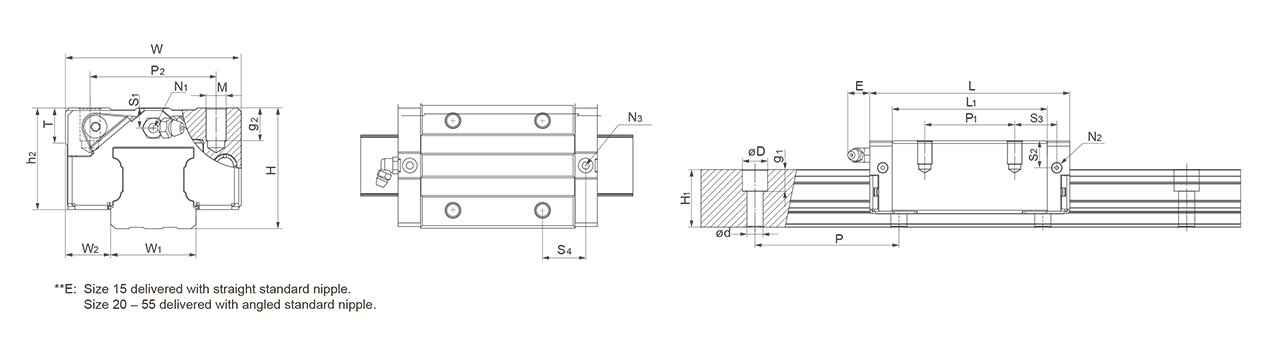

Technical Drawing
Designation Select all System Height (H) System Width (W) Block Length (L)
24 34 41,20
Compare
Get quote
28 42 49,20
Compare
Get quote
33 48 57,40
Compare
Get quote
42 60 68
Compare
Get quote
Technical Drawing
Designation Select all P2 P1 Mxg2 M1
26 - M4x7 -
Compare
Get quote
32 - M5x7 -
Compare
Get quote
35 - M6x9 -
Compare
Get quote
40 - M8x10 -
Compare
Get quote
Technical Drawing
Designation Select all W1 H1 D x d x g1 Hole Pitch (P)
15 15 7,5x4,5x5,3 60
Compare
Get quote
20 20 9.5x6x8.5 60
Compare
Get quote
23 23 11x7x9 60
Compare
Get quote
28 27 14x9x12 80
Compare
Get quote
Technical Drawing
Designation Select all L1 h2 W2 S1 E S2 N3 N1 N2 Mxg2 S3 S4 T H1
26 20,70 9,50 4,50 3,50 7,50 P3 M3x6.5 M3x6 M4x7 15,60 16,70 6 15
Compare
Get quote
32,20 23 11 4 10 7,40 P4 M3x7.5 M3x5.5 M5x7 19,10 19,80 8 20
Compare
Get quote
38,40 27 12,50 5 12 9,30 P4 M6x7.5 M3x6.5 M6x9 22,20 23,20 8 23
Compare
Get quote
44 35,20 16 7,50 12 12 P5 M6x8.5 M6x5 M8x10 27 26,70 12 27
Compare
Get quote
