HRC FN

STOCK ITEM

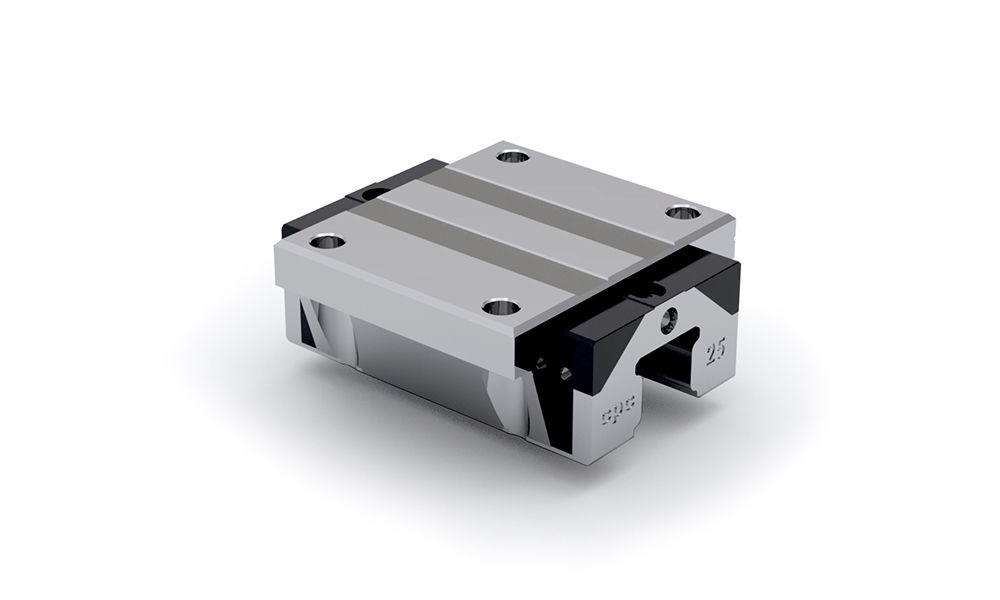

Flanged type block.

N2 = injecting holes
N2, N3 will be seal before shipment, open it when first using the product
N3 = O-ring size for lubrication from above
HRC45FN and HRC55FN are without ball chain.
The rating load capacities and static moment are calculated according to ISO14728 standard. The rating life for basic dynamic load rating is defined as the total 100 km travel distance that 90% of a group of identical linear guides can be operated individually under the same conditions free from any material damage caused by rolling fatigue. When the standard of 50km travel distance is applied, the above basic dynamic load rating C of ISO 14728 should be multiplied by 1.26 for conversion.

Dimensions in mm.
Download PDF
Additional Drawing 1
Designation Select all Lead Time * Dynamic Load Capacity C Static Load Capacity C0 Static Moment Mr0 Static Moment Mp0 Static Moment My0 Weight Block
1 9,9 KN 17,5 KN 140 Nm 105 Nm 105 Nm 200 g
Compare
Get quote
1 17,1 KN 30 KN 325 Nm 230 Nm 230 Nm 318 g
Compare
Get quote
1 24,8 KN 42,5 KN 540 Nm 385 Nm 385 Nm 578 g
Compare
Get quote
1 32,8 KN 53,7 KN 845 Nm 565 Nm 565 Nm 896 g
Compare
Get quote
1 45,9 KN 82,9 KN 1700 Nm 1080 Nm 1080 Nm 1430 g
Compare
Get quote
1 71,3 KN 122,1 KN 3200 Nm 1910 Nm 1910 Nm 2794 g
Compare
Get quote
1 128 KN 186 KN 4949 Nm 3278 Nm 3278 Nm 5440 g
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

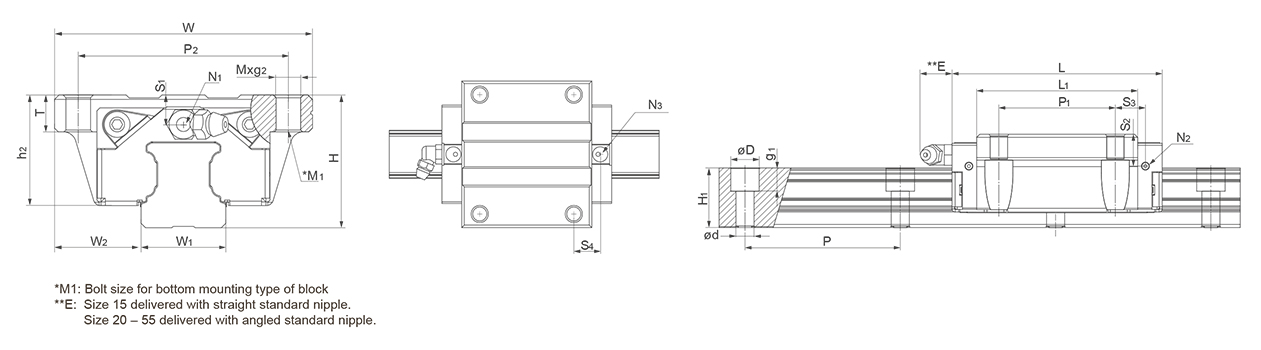

Technical Drawing
Designation Select all System Height (H) System Width (W) Block Length (L)
24 47 55,50
Compare
Get quote
30 63 69
Compare
Get quote
36 70 81,20
Compare
Get quote
42 90 95,50
Compare
Get quote
48 100 111,20
Compare
Get quote
60 120 135,50
Compare
Get quote
70 140 168,50
Compare
Get quote
Technical Drawing
Designation Select all P2 P1 Mxg2 M1
38 30 M5x7 M4
Compare
Get quote
53 40 M6x10 M5
Compare
Get quote
57 45 M8x12 M6
Compare
Get quote
72 52 M10x15 M8
Compare
Get quote
82 62 M10x15 M8
Compare
Get quote
100 80 M12x18 M10
Compare
Get quote
116 95 M14x18 M12
Compare
Get quote
Technical Drawing
Designation Select all W1 H1 D x d x g1 Hole Pitch (P)
15 15 7.5x4.5x5.3 60
Compare
Get quote
20 20 9.5x6x8.5 60
Compare
Get quote
23 23 11x7x9 60
Compare
Get quote
28 27 14x9x12 80
Compare
Get quote
34 32 14x9x12 80
Compare
Get quote
45 39 20x14x17 105
Compare
Get quote
53 45,70 24x16x20 120
Compare
Get quote
Technical Drawing
Designation Select all L1 h2 W2 S1 E S2 N3 N1 N2 Mxg2 Remark S3 S4 T H1
40,30 20,70 16 8,50 3,50 11,50 P3 M3x6.5 M3x6 M5x7 - 9,80 10,90 7 15
Compare
Get quote
52 25 21,50 6 10 9,40 P4 M3x7.5 M3x5,5 M6x10 - 11 11,70 10 20
Compare
Get quote
62,20 30 23,50 12 12 16,30 P4 M6x7.5 M3x6,5 M8x12 - 16,60 17,60 12 23
Compare
Get quote
71,50 35,20 37,50 10,50 12 15 P5 M6x8.5 M6x5 M10x15 - 20,80 20,50 16 27
Compare
Get quote
86,20 40,40 31 15 12 22 P5 M6x10 M6x7 M10x15 - 23,40 24,10 16 32
Compare
Get quote
102,50 50,70 33 21,10 14 28,10 P5 PTI/8x12.5 M6x10,5 M12x18 No ball chain 27,30 27,30 19 39
Compare
Get quote
126,50 58 43,50 13,50 12 23,50 P5 M6x10 M6x13 M14x18 No ball chain 24,80 23,80 18 45,70
Compare
Get quote
