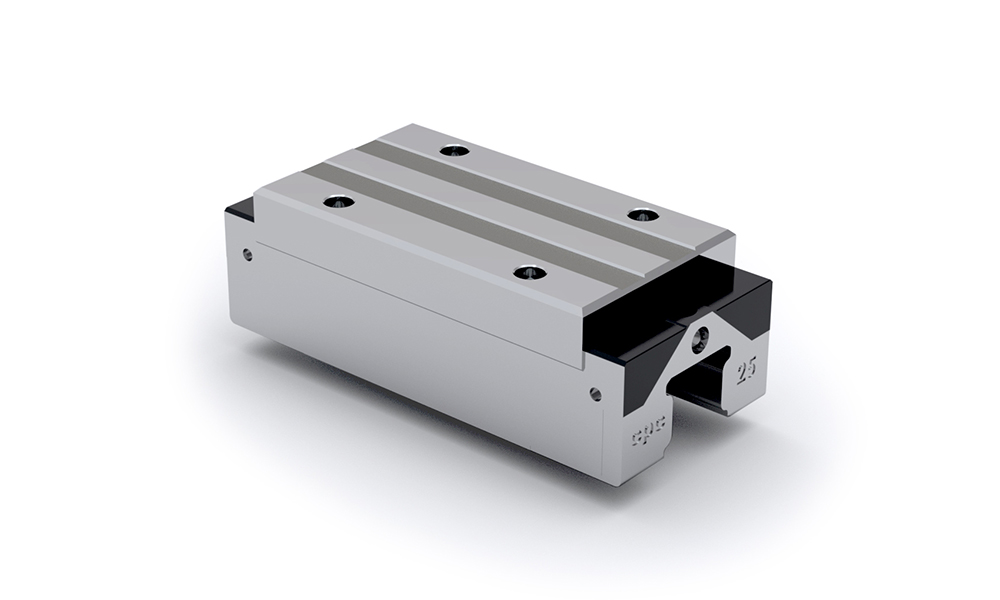

HRC ML

STOCK ITEM
Slim, long block.

N2 = injecting holes
N2, N3 will be seal before shipment, open it when first using the product
N3 = O-ring size for lubrication from above
HRC45ML is without ball chain.
The rating load capacities and static moment are calculated according to ISO14728 standard. The rating life for basic dynamic load rating is defined as the total 100 km travel distance that 90% of a group of identical linear guides can be operated individually under the same conditions free from any material damage caused by rolling fatigue. When the standard of 50km travel distance is applied, the above basic dynamic load rating C of ISO 14728 should be multiplied by 1.26 for conversion.

Dimensions in mm.
Download PDF
Additional Drawing 1
Designation Select all Lead Time * Dynamic Load Capacity C Static Load Capacity C0 Static Moment Mr0 Static Moment Mp0 Static Moment My0 Weight Block
1 20,4 KN 38,5 KN 415 Nm 390 Nm 390 Nm 400 g
Compare
Get quote
1 30,7 KN 57,7 KN 735 Nm 710 Nm 710 Nm 685 g
Compare
Get quote
1 39,6 KN 70,2 KN 1105 Nm 950 Nm 950 Nm 1150 g
Compare
Get quote
1 54,7 KN 106,5 KN 2185 Nm 1755 Nm 1755 Nm 1953 g
Compare
Get quote
1 89,5 KN 169,1 KN 4430 Nm 3460 Nm 3460 Nm 4060 g
Compare
Get quote
1 147 KN 226 KN 6472 Nm 5284 Nm 5284 Nm 6243 g
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation Select all System Height (H) System Width (W) Block Length (L)
30 44 87,20
Compare
Get quote
40 48 105
Compare
Get quote
45 60 118
Compare
Get quote
55 70 136,60
Compare
Get quote
70 86 171,50
Compare
Get quote
80 100 202
Compare
Get quote
Technical Drawing
Designation Select all P2 P1 Mxg2 M1
32 50 M5x8.5 -
Compare
Get quote
35 50 M6x9 -
Compare
Get quote
40 60 M8x12 -
Compare
Get quote
50 72 M8x13 -
Compare
Get quote
60 80 M10x20 -
Compare
Get quote
75 95 M12x25 -
Compare
Get quote
Technical Drawing
Designation Select all W1 H1 D x d x g1 Hole Pitch (P)
20 20 9.5x6x8.5 60
Compare
Get quote
23 23 11x7x9 60
Compare
Get quote
28 27 14x9x12 80
Compare
Get quote
34 32 14x9x12 80
Compare
Get quote
45 39 20x14x17 105
Compare
Get quote
53 45,70 24x16x20 120
Compare
Get quote
Technical Drawing
Designation Select all L1 h2 W2 S1 E S2 N3 N1 N2 Mxg2 Remark S3 S4 T H1
70,20 25 12 6 10 9,40 P4 M3x7.5 M3x5.5 M5x8.5 - 13,10 13,80 8 20
Compare
Get quote
86 34 12,50 12 12 16,30 P4 M6x7.5 M3x6.5 M6x9 - 21 22 12 23
Compare
Get quote
94 38,40 16 10,50 12 15 P5 M6x8.5 M6x5 M8x12 - 21,70 21,80 12 27
Compare
Get quote
111,60 47,40 18 15 12 22 P5 M6x10 M6x7 M8x13 - 25,10 25,80 14 32
Compare
Get quote
138,50 60,70 20,50 21,10 14 28,10 P5 PTI/8x12.5 M6x10.5 M10x20 No ball chain 35 35 14 39
Compare
Get quote
160 68 23,50 23,50 12 33,50 P5 M6x10 M6x13 M12x25 No ball chain 41,50 40,50 16 45,70
