ARC FN

STOCK ITEM
Flanged type block with low height.

N2 = injecting holes
N2, N3 will be seal before shipment, open it when first using the product
N3 = O-ring size for lubrication from above

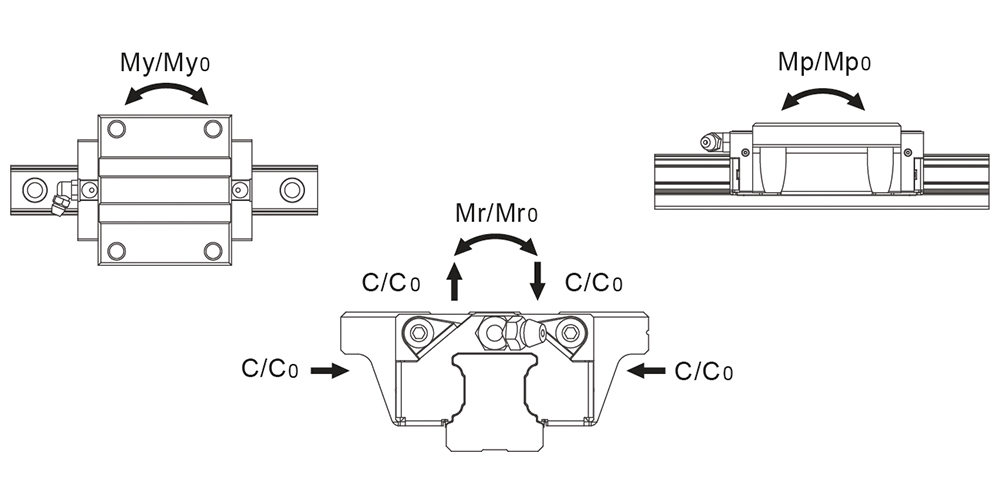

The rating load capacities and static moment are calculated according to ISO14728 standard. The rating life for basic dynamic load rating is defined as the total 100 km travel distance that 90% of a group of identical linear guides can be operated individually under the same conditions free from any material damage caused by rolling fatigue. When the standard of 50km travel distance is applied, the above basic dynamic load rating C of ISO 14728 should be multiplied by 1.26 for conversion.

Dimensions in mm.
Download PDF
Additional Drawing 1
Designation Select all Lead Time * Dynamic Load Capacity C Static Load Capacity C0 Static Moment Mr0 Static Moment Mp0 Static Moment My0 Weight Block
1 9,9 KN 17,5 KN 140 Nm 105 Nm 105 Nm 200 g
Compare
Get quote
1 17,1 KN 30 KN 325 Nm 230 Nm 230 Nm 336 g
Compare
Get quote
1 24,8 KN 42,5 KN 540 Nm 385 Nm 385 Nm 524 g
Compare
Get quote
1 32,8 KN 53,7 KN 845 Nm 565 Nm 565 Nm 1200 g
Compare
Get quote
2 45,9 KN 82,9 KN 1700 Nm 1080 Nm 1080 Nm 1580 g
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

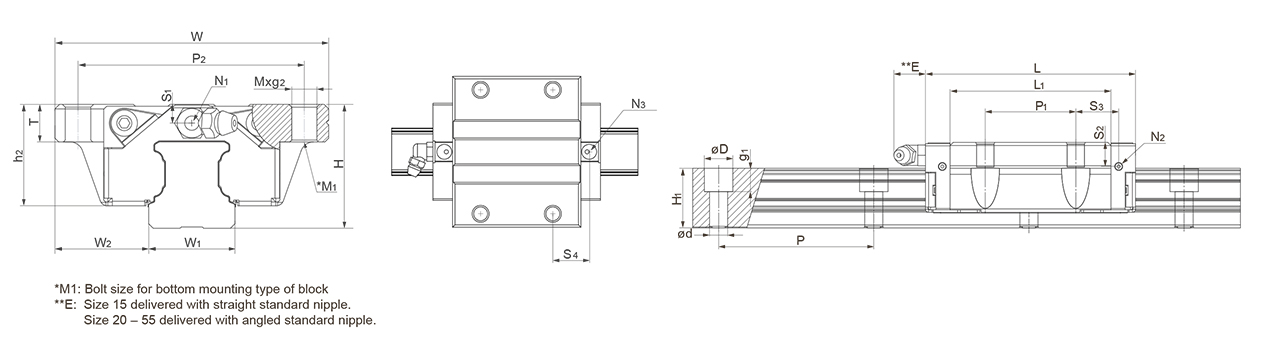

Technical Drawing
Designation Select all System Height (H) System Width (W) Block Length (L)
24 52 55,50
Compare
Get quote
28 59 69
Compare
Get quote
33 73 81,20
Compare
Get quote
42 90 95,50
Compare
Get quote
48 100 111,20
Compare
Get quote
Technical Drawing
Designation Select all P2 P1 Mxg2 M1
41 26 M5x7 M4
Compare
Get quote
49 32 M6x10 M5
Compare
Get quote
60 35 M8x12 M6
Compare
Get quote
72 40 M10x15 M8
Compare
Get quote
82 50 M10x15 M8
Compare
Get quote
Technical Drawing
Designation Select all W1 H1 D x d x g1 Hole Pitch (P)
15 15 7.5x4.5x5.3 60
Compare
Get quote
20 20 9.5x6x8.5 60
Compare
Get quote
23 23 11x7x9 60
Compare
Get quote
28 27 14x9x12 80
Compare
Get quote
34 32 14x9x12 80
Compare
Get quote
Technical Drawing
Designation Select all L1 h2 W2 S1 E S2 N3 N1 N2 Mxg2 S3 S4 T H1
40,30 20,70 18,50 4,50 3,50 7,50 P3 M3x6,5 M3x6 M5x7 8,90 10,90 7 15
Compare
Get quote
52 23 19,50 4 10 7,40 P4 M3x7,5 M3x5,5 M6x10 13 13,70 10 20
Compare
Get quote
62,50 27 25 5 12 9,30 P4 M6x7,5 M3x6,5 M8x12 16,60 17,60 12 23
Compare
Get quote
71,50 35,20 31 7,50 12 12 P5 M6x8,5 M6x5 M10x15 20,80 20,50 15 27
Compare
Get quote
86,20 40,40 33 8 12 15 P5 M6x10 M6x7 M10x15 23,40 24,10 15 32
Compare
Get quote
